The Ontology provides a structured representation of the chip described in your spec. It is exported as a JSON schema. The ontology serves as a single source of truth that validates all other collateral — if your ontology is correct, your downstream artifacts (test plans, testbench) stay aligned with the spec.

​
Explore Components

Click Ontology in the left nav pane to explore chip components and their attributes:
  • Mode Registers — Configuration registers and their fields, with possible values
  • Timing Parameters — Timing specifications with value ranges per speed grade
  • Pinout — Pin definitions, types, directions, and bit widths
  • Commands — Supported chip commands and their parameters
Each component is traceable to corresponding sections of the spec.

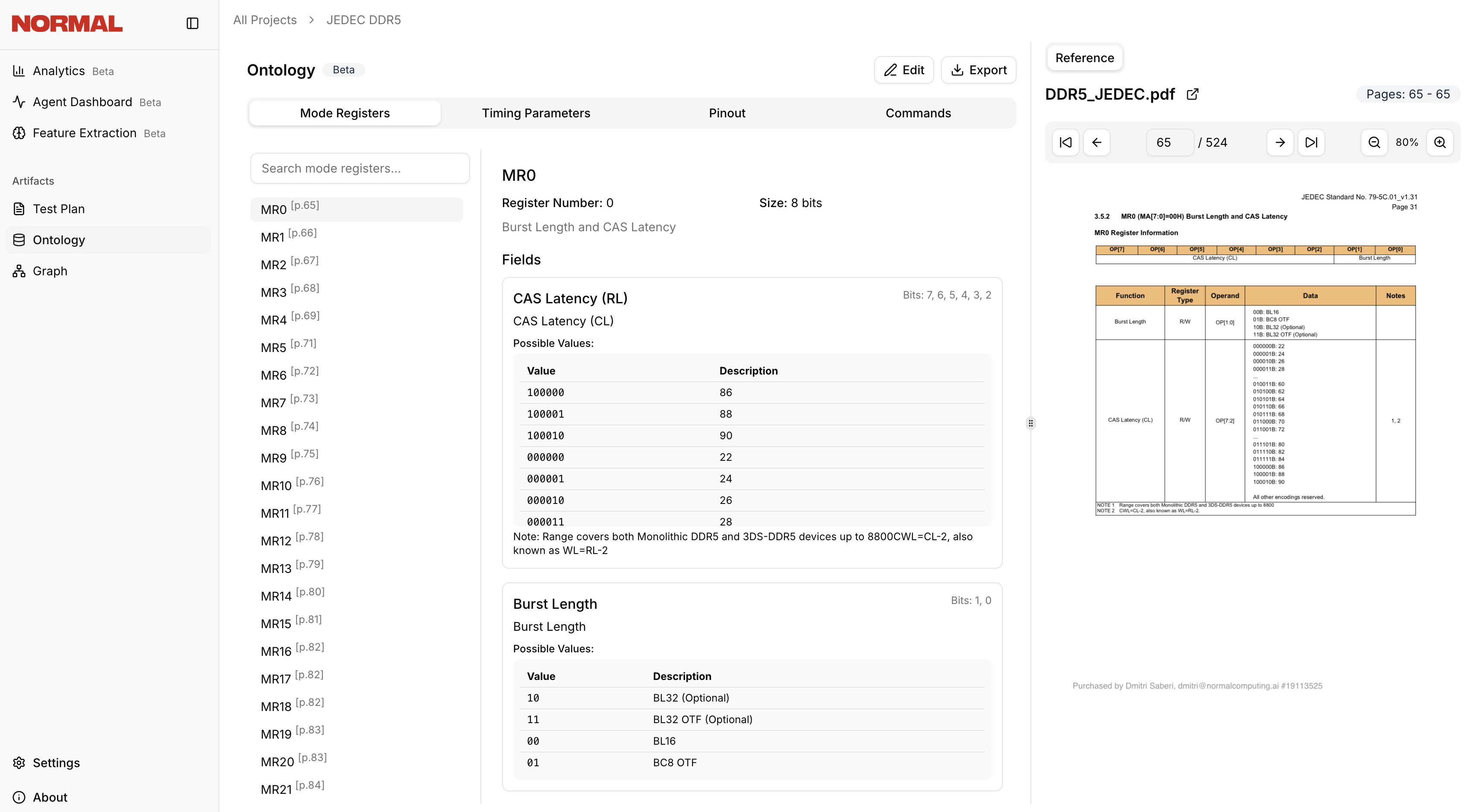

Ontology view with mode registers and spec reference

​
Edit Components

For any component, select Edit to revise its fields. Click Save to persist your changes.

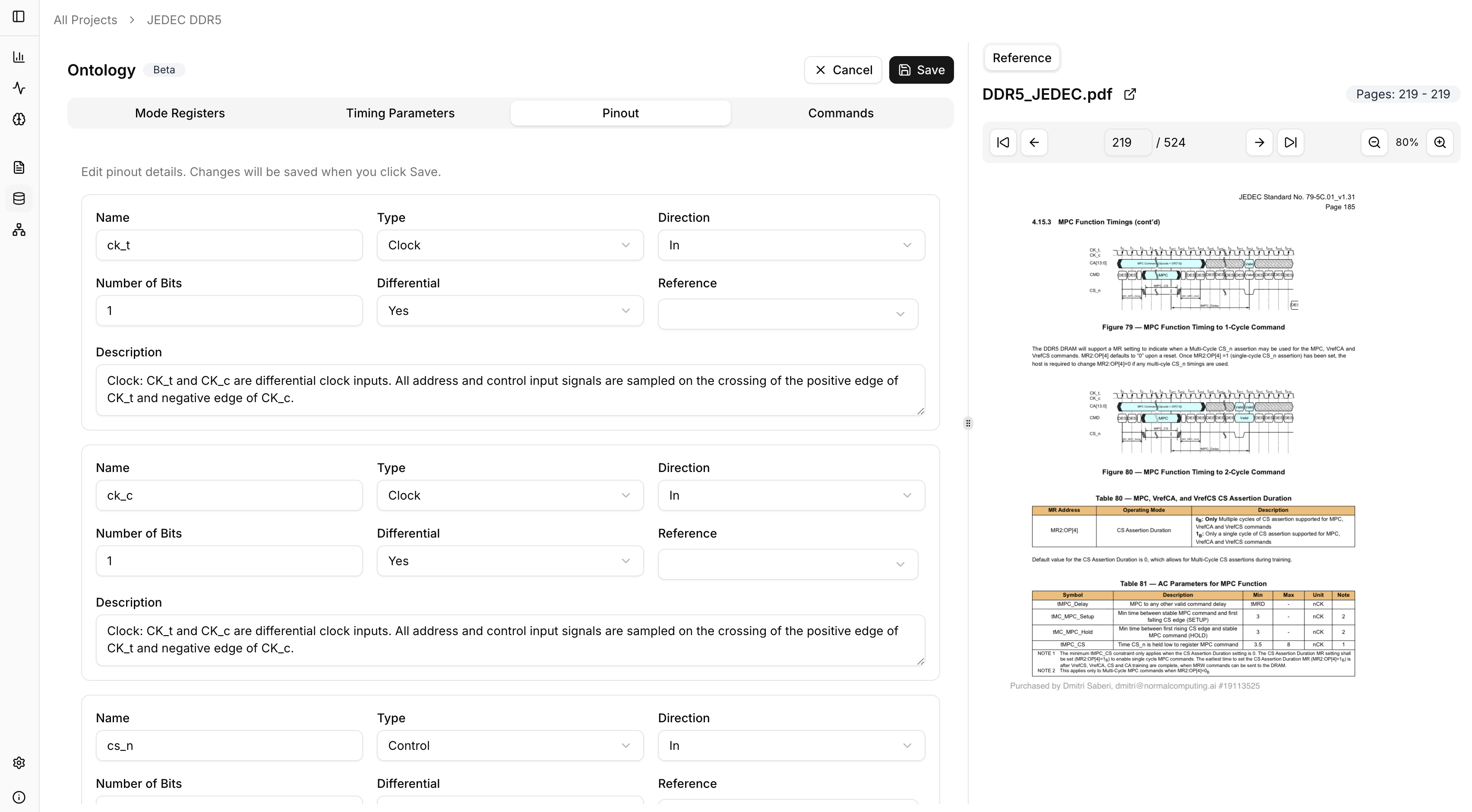

Editing ontology pinout details

​
Export

You can export the ontology as a JSON file for use in downstream workflows like BFM generation.
